ROW

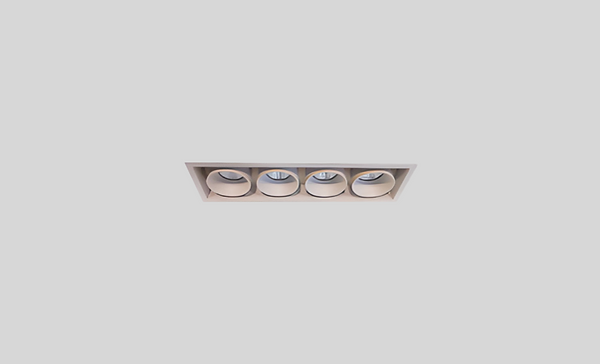

Recessed square and rectangular modular spotlight. made of Dia-cast aluminum. Number of optics: 1,2,3 & 4 fix optics LED COB. UGR: <19. External driver. Option to apply DALI / 1-10 V / Trailing Edge dimmable. IP Rating: 20.
Product Details
FL0419
Download
Data Sheet
LDT
Item Code | W | K | Lumen | CRI | Dimension / Cutout |
|---|---|---|---|---|---|
FL444.20.4 | 20 | 4000 | 1700 | ≥90 | 191x60* 65mm / 181x52mm |
FL444.20.3 | 20 | 3000 | 1600 | ≥90 | 191x60* 65mm / 181x52mm |
FL444.15.4 | 15 | 4000 | 1275 | ≥90 | 147x60* 65mm / 138x52mm |
FL444.15.3 | 15 | 3000 | 1200 | ≥90 | 147x60* 65mm / 138x52mm |
FL444.10.4 | 10 | 4000 | 850 | ≥90 | 105x60* 65mm / 95x52mm |
FL444.10.3 | 10 | 3000 | 800 | ≥90 | 105x60* 65mm / 95x52mm |
FL444.5.4 | 5 | 4000 | 425 | ≥90 | 60x60* 65mm / 52x52mm |
FL444.5.3 | 5 | 3000 | 400 | ≥90 | 60x60* 65mm / 52x52mm |
